  Current Location:Home Products Spring Unit Packing Machinery HS-SUP-20P

Spring Unit Packing Machinery// HS-SUP-20P

　Product Description

Please download(Spring unit roll-packing machine HS-SUP-20P.pdf)

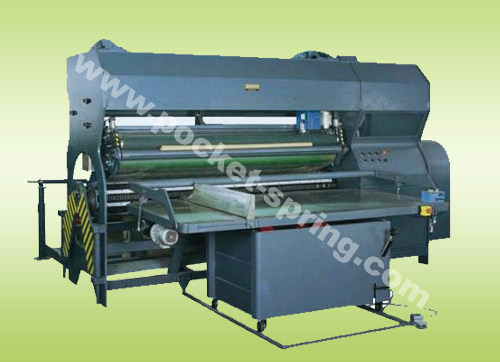

Spring unit roll packing machine HS-BSUP-20P

Technical characteristics：
1. Save storage and delivery cost.
2. Excellent double-waved seal.
3. Up to: 1.5 minutes per unit.
4. Accept Bonnell spring unit and pocket spring unit.
5. Double-waved seal to ensure excellent package.
6. Automatically compressing & packing / high-efficiency / available for variable products with different dimensions.
7. Computerized compressing ratio to satisfy different requirement of compression.
8. Compact design minimizes space occupation rate.
9. Electronic components are CE-conform and international standard.
10. Low & easy maintenance.
11. Easy to operate / short training period.

Bonnell spring unit roll-packing machine HS-PSUP-20P
Technical Information:
Performance
roll-packing both Bonnell spring unit and Pocket spring unit without frame.
production capacity 　 8mins/roll
 Consumptive Material Specs
Packing material        Type 　 craft paper
Thickness 　 0.2mm
Inner dia.of packing material 　 Min/75mm
Outside diameter of packing material 　 Max/1200mm
Width of packing material 　 Max/2200mm
General Data
Mattress width 　 Max/2000mm
Mattress length 　 Max/2300mm
Mattress thickness 　 Max/180mm
Diameter of finished roll 　 Max/700mm
Air consumption 　 Approx/5m³/h  0.8mpa
Air pressure 　 0.6-0.7mpa
Power consumption in total 　 6w
Power requirements Voltage 　 3AC  380V
Frequency 　 50/60Hz
Input fuse 　 15A
Cable section 　 4×6mm²
Working temperature 　 +5℃—+45℃
Weight 　 3000kg
