Mattress Packing Machine //HS-MRP-25P

　Product Description

Please download(Mattress roll packing machine HS-MRP-25P.pdf )

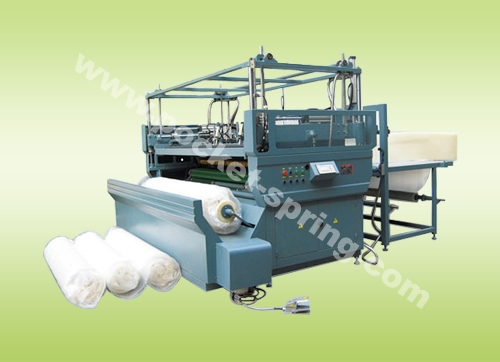

Mattress roll packing machine HS-MRP-25P

Technical characteristics：
· Save storage and delivery cost
· Perfect seal of film provides more security in storage & delivery.
· CE-Conform / International standard components
· Accept all kinds of finished mattress and soft cushions made from sponge, simplify mattress delivery, save storage and delivery cost
· Available wrapper : PE, PVC, PU
· Continuous heat seal bars to make perfect seal
· Rolling Packing the compressed mattress or foam products( without frame) by kneading
· Compact design minimizes floor space
· Low and easy maintenance
· Easy to operate / short training period.

Mattress roll-packing machine HS-MRP-25P
Technical Information:
Performance
with plactic bag, roll-packing mattress(without frame) made of foam, latex foam, or pocket spring unit, etc.
the volume became 5% to 10% after packing.
production capacity 　 40seconds/unit
 Consumptive Material Specs
Packing material        Type 　 PE film/PE
Thickness 　 0.1mm
Inner dia.of packing material 　 Min70mm
Outside diameter of packing material 　 Max200mm
Width of packing material 　 Max2350mm
General Data
Mattress width 　 Max2000mm
Mattress length 　 Max2300mm
Mattress thickness 　 Max350mm
Diameter of finished roll 　 Min250mm
Air consumption 　 Approx/约18m³/h  0.7mpa
Air pressure 　 0.6-0.7mpa
Power consumption in total 　 10w
Power requirements
 Voltage 　 3AC  380V
Frequency 　 50/60Hz
Input fuse 　 25A
Cable section 　 4×10mm²
Working temperature 　 +5℃—+45℃
Weight 　 Approx4500kg
