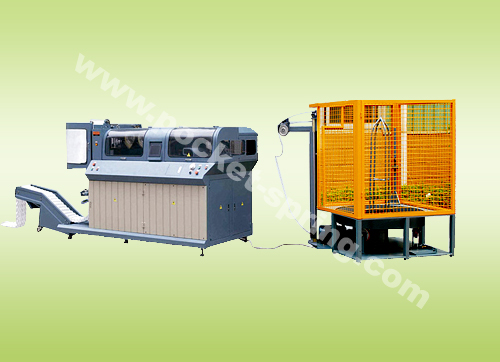

Pocket Spring Coiler HS-PSM80

Product Description:
Coiler HS-PSM80 has an CNC system which makes it the poineer of the pocket spring coilers.
This machine combines the coiler with a flexible control system coming from servo and changes quickly the varieties and the size of the pocket springs in the producing process.
Coiler HS-PSM80 can meet with customers' requirement of the pocket products model in a short time.
Coiler HS-PSM80 also can set various products in advance, and change the time to produce the pocket springs within 5 minutes in the range of spec adjusting.
Coiler HS-PSM80 can produce the mixed-style pocket spring strands. It provides the stage and space to the clients for the exploitation of the new products.
Just adjust the parameter by the touch screen to make the pocket spring with different height, to achieve the zoned effect of the pocket spring units, also satisfy the requirement from the customers.

Technical characteristics：
1. The high efficiency-performance is perfect.
Under the stable running situation, the output of Coiler HS-PSM80 is up to 80 springs per minute.
2. The stable-performance is high.
Coiler HS-PSM80 is developed on the basic of Coiler HS-PSM70 that was feedback the ideas from the users and the long-term experiences of the technicians in our firm.
Added to the completely new control pattern,it meet with the clients, Requirement of the high efficiency to produce.
3. With the excellent design and technology, it is more convenient and economical to use, maintenance and take care of this machine.
4. Coiler HS-PSM80 is up to the safe standard of CE.
5. Unique computerized coiler (computerized numerical control system/CNC) Coiler is full-controlled by servo and without cam/Easy and quick to change the dimension of spring by only changing the parameters in the computer.
6. Saves up to 15 types of springs in different dimensions/produces different springs one by one continuously.
7. Cutter to divide the pocket springs into rows automatically(except bottom seal).
8. Intelligent sensors can check malfunctions all the time /Display corresponding alarm on the HIM duly /one operator can run several sets of LR-PS-HX alone.

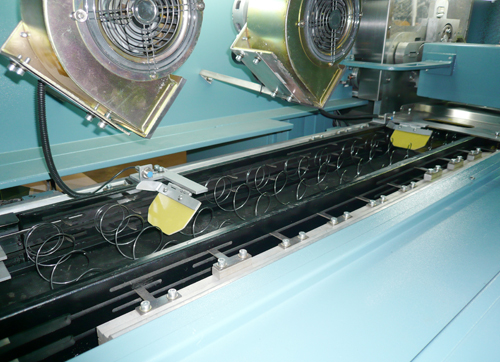

9. Unique patented spring conveyor are controlled by servo/Accurate motions.

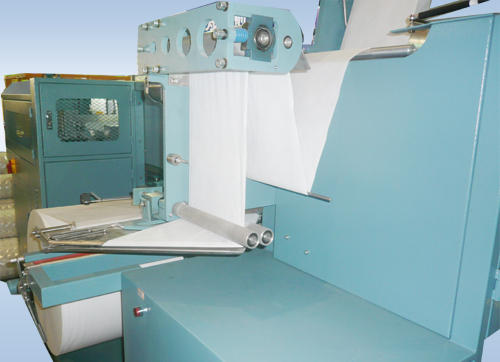

10. User-friendly non-woven fabric joint device saves time and non-woven fabric.
11. Ultrasonic horn is made of Titanium, which is Durable and Firm.
12. Low and easy maintenance.
13. Spare parts are “off the shelf”.
