  Current Location:Home Products Spring Unit Packing Machinery HS-PSUP-15P

Spring Unit Packing Machinery//HS-PSUP-15P

　Product Description

Please download(pocket spring roll-packing machine HS-PSUP-15P.pdf)

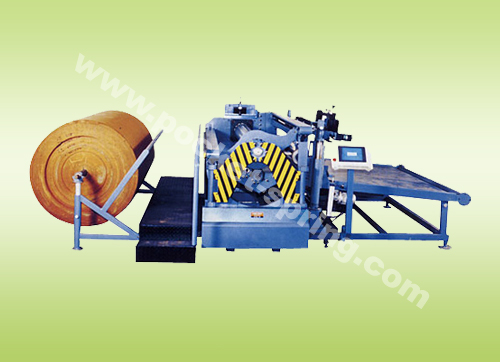

Pocket spring unit roll packing machine HS-PSUP-15P

Product Description:
Accepts: Pocket spring units , Foam mattress, Latex mattress

Technical characteristics：
1. International patented discharging system for compressed-roll products provides secure package and prefect products.
2. Electronic components are CE-conform and "off the shelf"(such as：Mitsubishi, SMC, CKD, Schneider,).
3. Compact design minimizes floor space.
4. Low maintenance /stable performance.

Pocket spring coiler HS-PSUP-15P
Technical Information:
Performance

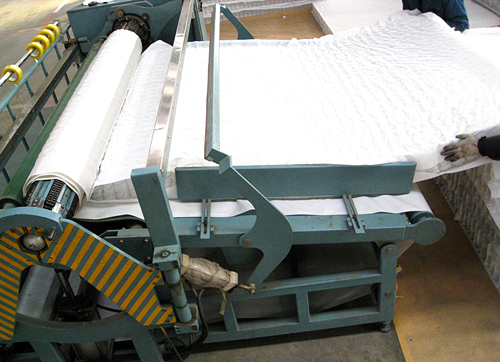

roll-packing Pocket spring unit without frame.
production capacity 　 8mins/roll
 Consumptive Material Specs
Packing material       Type 　 Non-woven
Thickness 　 65g-75g/m²
Inner dia.of packing material 　 Min/75mm
Outside diameter of packing material 　 Max/350mm
Width of packing material 　 Max/2200mm
General Data
Mattress width 　 Max/2000mm
Mattress length 　 Max/2300mm
Mattress thickness 　 Max/200mm

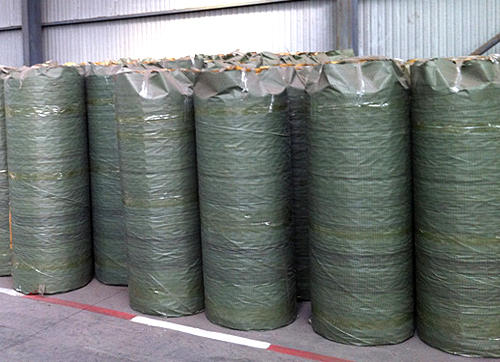

Diameter of finished roll 　 Max/700mm
Air consumption 　 Approx/约6m³/h  0.8mpa
Air pressure 　 0.6-0.7mpa
Power consumption in total 　 4w
Power requirements Voltage 　 3AC  380V
Frequency 　 50/60Hz
Input fuse 　 10A
Cable section 　 4×6mm²
Working temperature 　 +5℃—+45℃
Weight 　 2700kg
